Wheel Block Modular Drive System

The Wheel Block Modular Drive System is an advanced, flexible, and compact drive solution widely used in material handling, automation, and industrial machinery. This system is designed to provide efficient and reliable motion for various applications, including conveyor systems, cranes, and automated guided vehicles (AGVs).

1. Overview of the Wheel Block Modular Drive System

A Wheel Block Modular Drive System consists of modular wheel blocks that house drive units, wheels, and bearings. These blocks are designed for easy integration into different mechanical structures, making them a versatile choice for industries requiring mobility solutions.

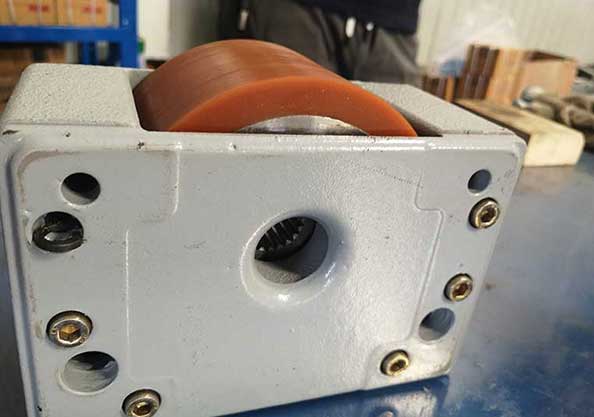

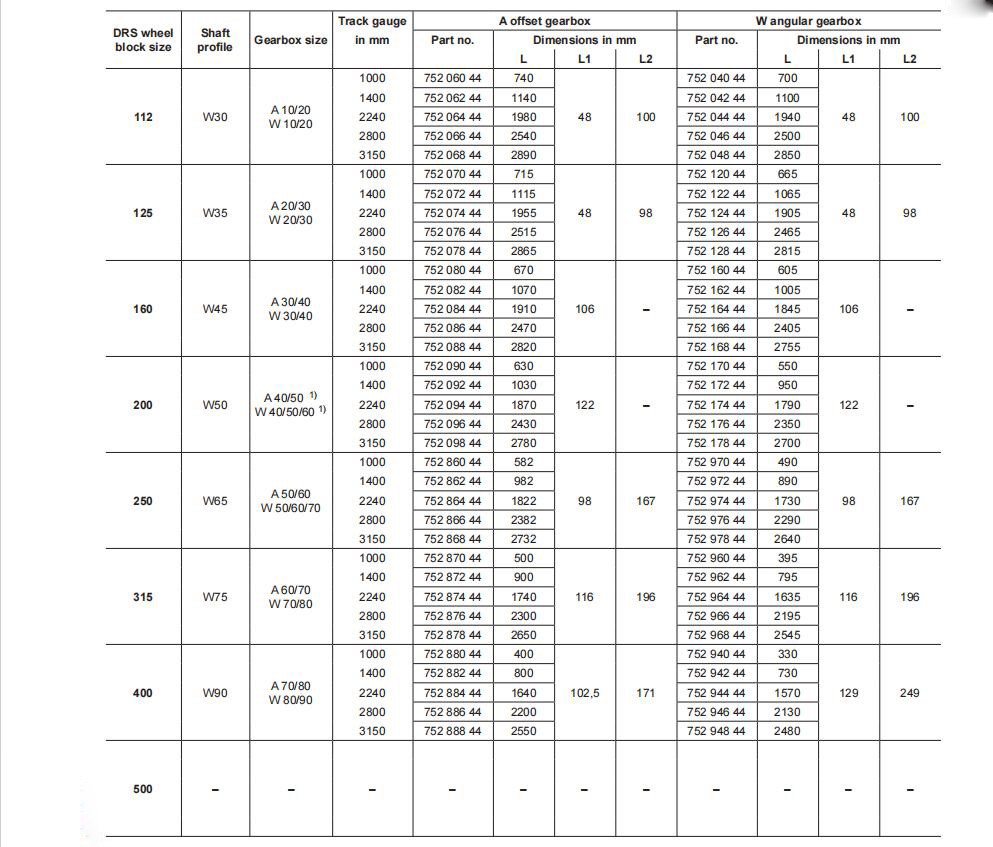

The construction sizes 112, 160, 200, 250, 250-V, 315, 400, and 500,slip-on gear mechanisms of various manufacturers in,perform as a ready-to-install travel unit assume the multi-faceted transport requirements for conveyer related systems in the entire field of machine construction.

Wheel block systems models sizes

2. Key Components

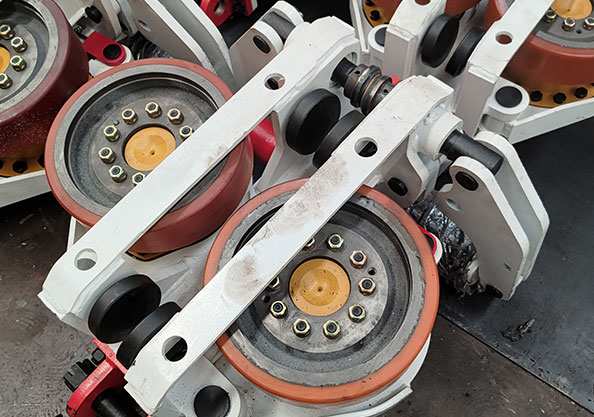

a. Wheel Block Unit

The wheel block serves as the core of the system. It consists of:

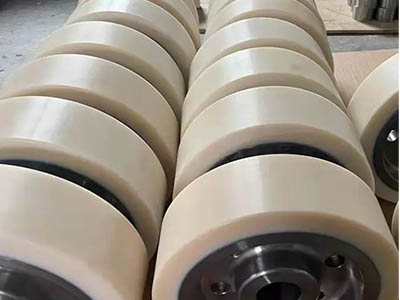

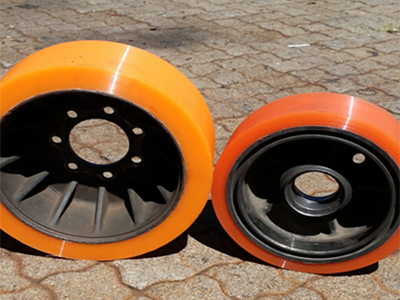

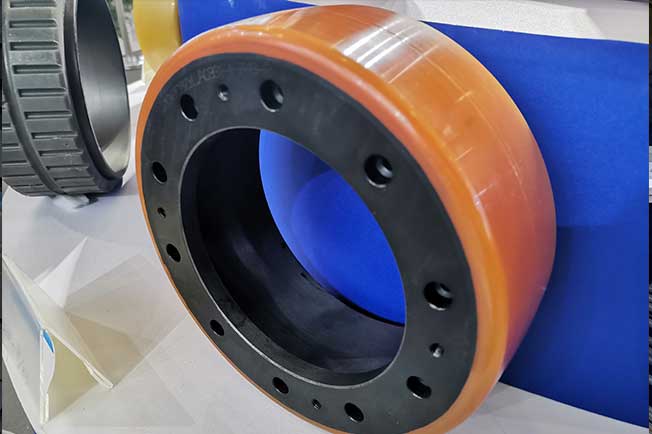

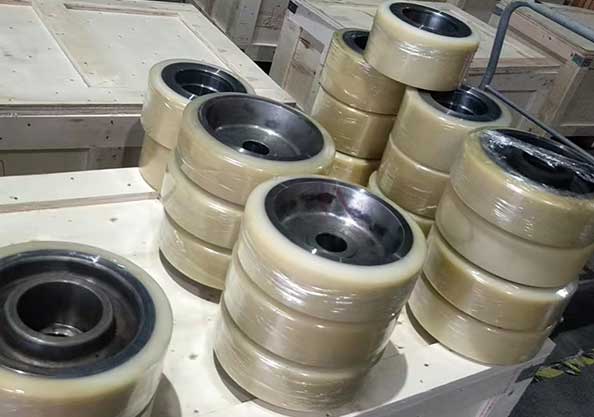

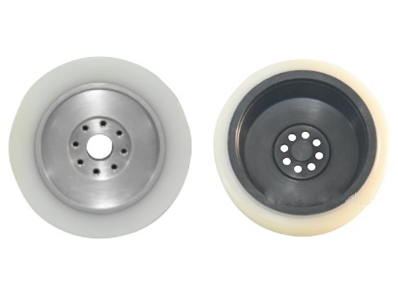

Wheel: Made from materials like polyurethane, steel, or cast iron, depending on load requirements.

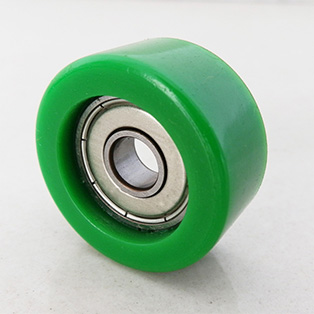

Bearing System: Ensures smooth and low-friction rotation.

Housing: A durable enclosure that protects internal components from dust, debris, and mechanical impact.

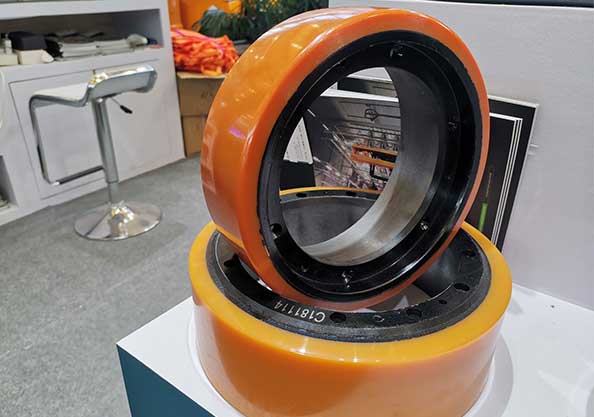

b. Drive Unit (Optional)

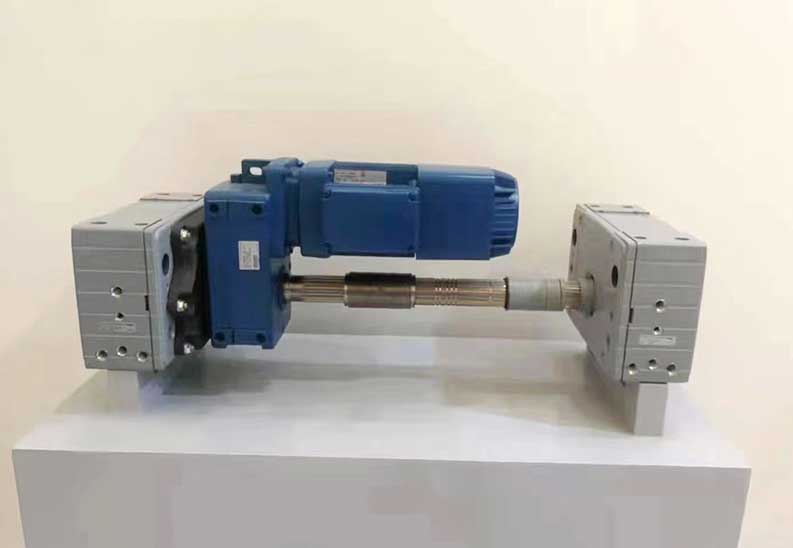

Integrated or externally attached electric or hydraulic motors drive the wheel block.

Torque transmission occurs via direct coupling or gearbox configurations.

c. Load-Carrying System

Designed to support heavy loads efficiently, often with high load-bearing capacity.

Some models include shock-absorbing features for smoother motion.

3. Features and Benefits

a. Modularity

The modular design allows easy replacement and customization.

Different wheel sizes and motor configurations can be selected according to operational needs.

b. High Load Capacity

Suitable for handling heavy industrial loads, with some models supporting multiple tons per wheel block.

c. Versatile Mounting Options

Can be mounted in different orientations, including horizontal, vertical, or angular positions.

d. Low Maintenance

High-quality bearings and durable materials reduce wear and tear, minimizing maintenance efforts.

e. Precision and Stability

Provides accurate motion control, which is crucial in automation and conveyor systems.

Wheel blocks manufacturer

4. Applications

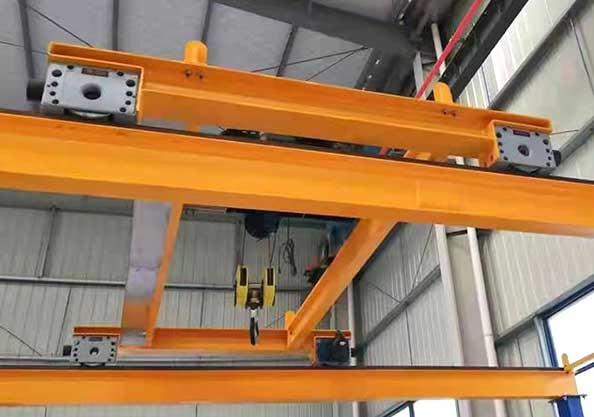

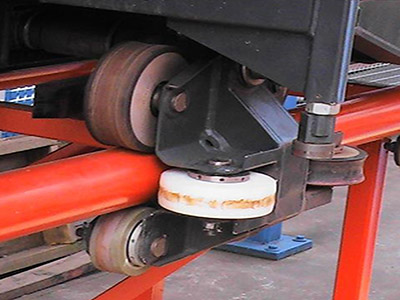

a. Overhead Cranes and Gantry Cranes

Wheel blocks are commonly used in crane applications for smooth and efficient movement along tracks.

b. Automated Guided Vehicles (AGVs)

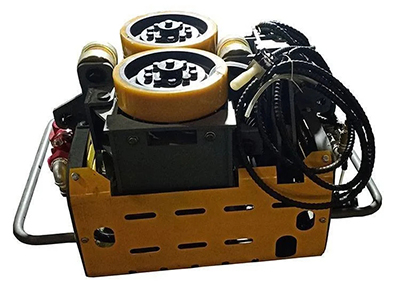

Modular drive systems help AGVs achieve precise movement in industrial automation settings.

c. Conveyor Systems

Used in automated warehouses, logistics centers, and manufacturing plants.

d. Heavy-Duty Transport Systems

Found in shipyards, steel mills, and automotive production lines for moving large components.

5. Selection Criteria

When choosing a Wheel Block Modular Drive System, consider:

Load Capacity – Ensure the system can support the required weight.

Wheel Material – Steel for heavy loads, polyurethane for noise reduction and floor protection.

Drive Configuration – Whether an integrated motor is required or an external drive is preferred.

Mounting Requirements – Compatibility with existing structures.

Environmental Conditions – Resistance to dust, moisture, and temperature variations.

The Wheel Block Modular Drive System is a highly efficient and adaptable solution for various industrial applications. Its modularity, load-bearing capacity, and ease of integration make it a preferred choice for industries focused on automation and material handling. By selecting the right wheel block system, businesses can enhance operational efficiency, reduce maintenance costs, and ensure long-term reliability in motion control applications.

The Philson wheel block system is designed for low-maintenance direct drive. Wheel blocks with high wheel loads and a wide range of connection possibilities serve as ready-to-install travel components for conveyer-related systems across the full machine building spectrum. Drive shafts suited for all gear manufacturers are available.

Philson Factories
