112 Wheel Block Modular Drive System

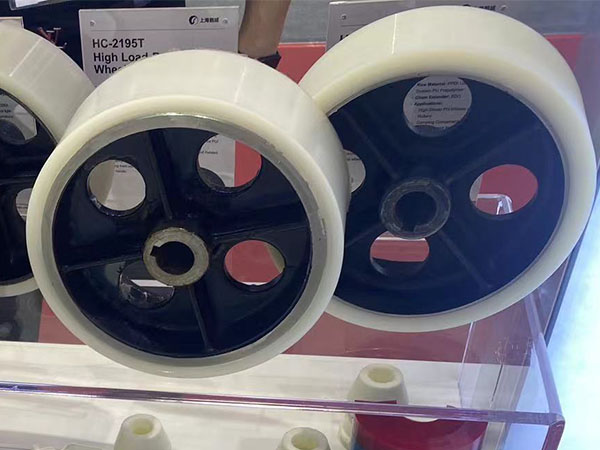

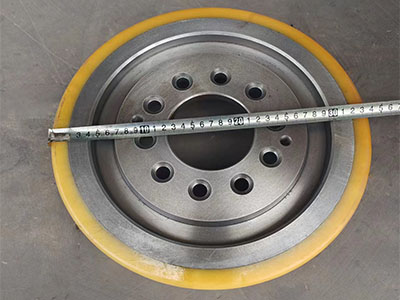

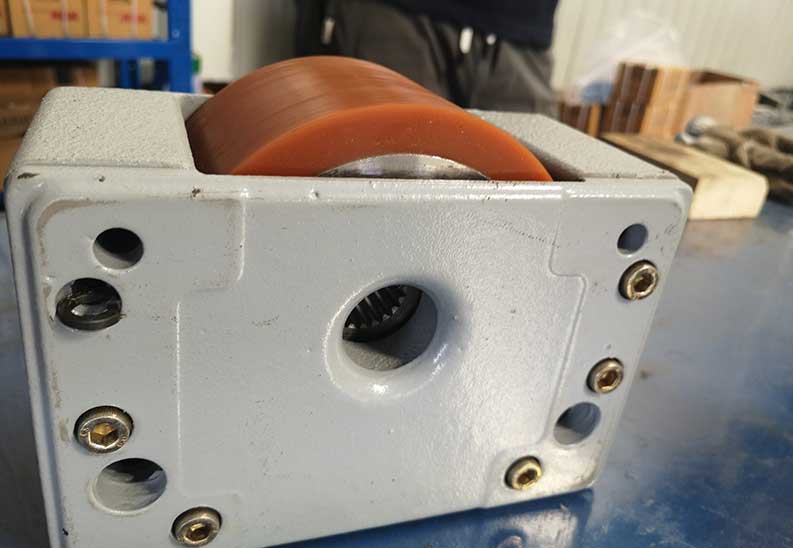

112 Wheel blocks are small modular wheel blocks with a diameter of 200 mm that are lightweight, easy to install, and have a high bearing capacity. Polyurethane can be wrapped around the wheel to make it running more silent.

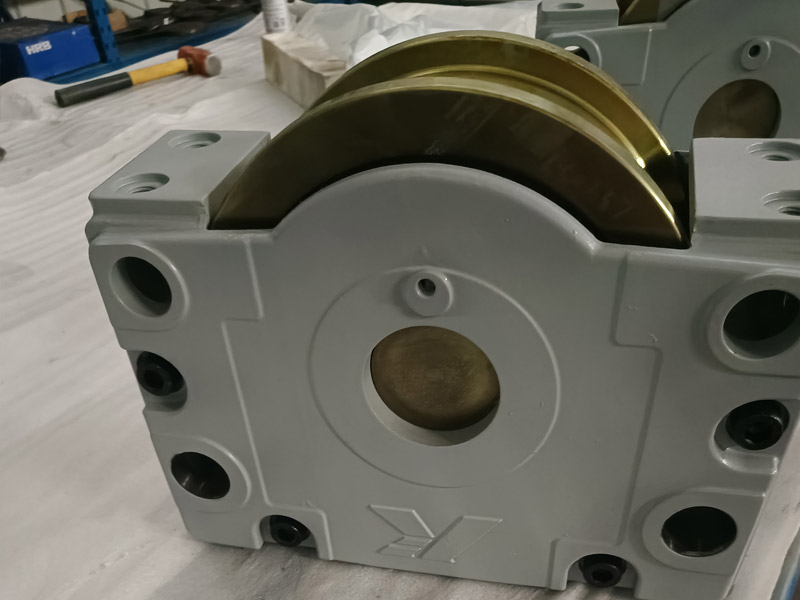

112 Double Flanges Wheel blocks -Dimensions ( with spheroidal-graphite cast-iron wheels )
size | Max. load capacity [lb] /[kg] | Travel wheel diameter [in] / [mm] | Weight [lb] /[kg] | [in] / [mm] a1 b1 b2 c1 h1 | ||||
112 | 6,000 / 2,750 | 4.4 / 112 | 16 / 7.3 | 7.48 / 190 | 1.85 / 47 | 3.15 / 80 | 3.78 / 96 | 5.16 / 131 |
| 125 | 11,000 / 5,000 | 4.9 / 125 | 22 / 9.9 | 8.66 / 220 | 2.36 / 60 | 3.15 / 80 | 3.85 / 98 | 5.8 / 147,5 |
| 160 | 15,400 / 7,000 | 6.3 / 160 | 40 / 18.3 | 10.8 / 275 | 2.55 / 65 | 3.5 / 89 | 4.33 / 110 | 7.36 / 187 |
| 200 | 22,000 / 10,000 | 7.9 / 200 | 80 / 35.7 | 13.3 / 340 | 2.55 / 65 | 3.97 / 101 | 5.11 / 130 | 9.37 / 238 |
| 250 | 35,000 / 16,000 | 9.8 / 250 | 140 / 62 | 15.1 / 385 | 2.95 / 75 | 4.33 / 110 | 5.91 / 150 | 11.1 / 281 |
| 315 | 48,400 / 22,000 | 12.4 / 315 | 260 / 117 | 18.5 / 470 | 3.54 / 90 | 5.11 / 130 | 7.1 / 180 | 13,75 / 349,5 |
| 400 | 66,000 / 30,000 | 15.7 / 400 | 445 / 201 | 22.8 / 580 | 4.33 / 110 | 6.1 / 155 | 8.27 / 210 | 17.3 / 440 |
| 500 | 88,000 / 40,000 | 19.7 / 500 | 775 / 352 | 27.5 / 700 | 4.33 / 110 | 6.7 / 170 | 9.44 / 240 | 22.3 / 566 |

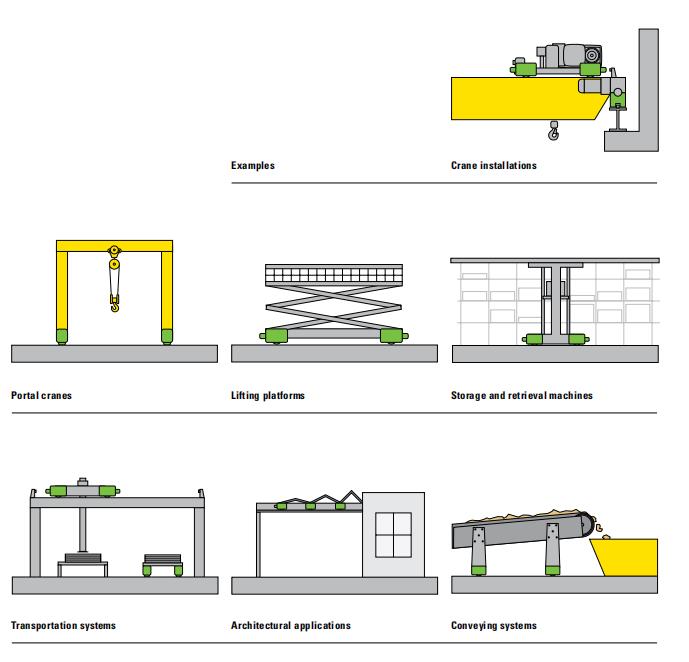

Wheel Blocks Examples
If you aren't sure how to choose a model, please feel free to contact us!
