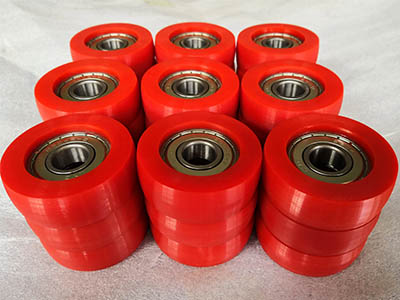

Polyurethane Industrial Casters Wheel with Precision Bearings

Polyurethane (PU) Casters & Wheels are high-performance material handling components engineered to provide high load capacity, low rolling resistance, and exceptional durability in demanding industrial environments. By chemically bonding premium-grade polyurethane elastomers to heavy-duty metal cores and pairing them with precision bearings, these caster wheels ensure smooth torque transfer, directional stability, and long-term operating efficiency.

Whether installed on manual transport carts or integrated into high-speed automated machinery, Polyurethane (PU) Casters & Wheels bridge the gap between heavy-duty dynamic strength and floor protection, making them a cornerstone for modern industrial logistics.

Key Features & Technical Advantages of Polyurethane (PU) Casters & Wheels

High Dynamic Load-Bearing Capacity

Engineered to withstand extreme vertical and radial loads without dynamic deformation, flat-spotting, or tread cracking. Standard load ratings range from 500 lbs to over 5,000 lbs (225 kg to 2,300+ kg) per wheel, tailored for both static storage and active transport lines.

Advanced Polyurethane Tread Compounds

• Superior Wear & Abrasion Resistance: Polyurethane treads outlast standard rubber by up to 4 times, significantly reducing replacement frequency and maintenance downtime.

• Non-Marking & Floor Protection: Treads safeguard delicate epoxy, polished concrete, and coated factory floors from scuffs, tire marks, and surface abrasion.

• Chemical & Oil Resistance: Formulated to resist chemical degradation when exposed to industrial solvents, grease, hydraulic fluids, and continuous moisture.

High Delamination Resistance & Robust Cores

Precision-Machined Metal Cores: Manufactured with cast iron, ductile iron, forged steel, or aluminum hubs to guarantee structural integrity under extreme dynamic shock.

Chemical Bonding Technology: Advanced primer and bonding agents ensure the polyurethane tread will not separate or peel from the hub, even under high torque or frequent sharp turning.

Precision Bearing Configurations

Equipped with high-performance bearing setups designed to minimize friction and ergonomic pushing force:

• Precision Ball Bearings: Best for low-noise operation, smooth rotation, and effortless manual pushing.

• Tapered Roller Bearings: Built for extreme dynamic loads, high-speed towing, and heavy side-thrust resistance.

• Sealed Stainless Steel Bearings: Provide maintenance-free performance in wash-down, cold-storage, or wet processing environments.

Vibration Dampening & Silent Operation

The elastomeric nature of Polyurethane (PU) Casters & Wheels absorbs floor impacts and mechanical vibration, dramatically reducing factory ambient noise compared to steel or cast iron alternatives.

Primary Industrial Applications for Polyurethane (PU) Casters & Wheels

High-load Polyurethane (PU) Casters & Wheels are widely integrated across heavy manufacturing and automation platforms:

Warehouse Logistics & Material Handling: Platform trucks, heavy-duty hand carts, mobile shelving, and material dollies.

Automotive & Aerospace Manufacturing: Assembly line transfer carts, engine stands, mobile tooling fixtures, and Ground Support Equipment (GSE).

Automated Guided Vehicles (AGVs) & AMRs: Drive wheels, load wheels, and idler casters for autonomous mobile robots.

Food Processing & Pharmaceuticals: Cleanroom-compatible transport carts requiring non-marking, corrosion-resistant components.

Heavy Machinery & Industrial Equipment: Portable gantries, machine bases, and heavy-load trailer systems.

Performance Comparison: Polyurethane (PU) Casters & Wheels vs. Alternatives

Durometer & Hardness Selection:

85A–90A Shore A: Soft-tread PU; maximum shock absorption, smooth floor protection, and enhanced traction.

95A Shore A / 70D Shore D: Hard-tread PU; highest dynamic load capacity, ultra-low rolling resistance, and reduced pushing/towing force.

Wheel Diameter & Tread Geometry: Larger wheel diameters (typically 4" to 12"+) improve clearance over floor joints, debris, and threshold transitions. Crowned tread profiles reduce swiveling friction, while flat profiles maximize load distribution.

Operating Environment: Select stainless steel hardware, dust seals, or specialized cold-resistant/ESD anti-static PU formulations for extreme ambient conditions.

Summary

Engineered for exceptional dynamic strength, low friction, and continuous duty cycles, Polyurethane (PU) Casters & Wheels with Precision Bearings represent an essential upgrade for modern material handling operations. Combining advanced elastomer chemistry with heavy-duty hub construction, these wheels deliver prolonged service life, reduced maintenance downtime, and superior load control for industrial applications. Contact us.
