Stacker Guide Wheels Precision & Safety Core

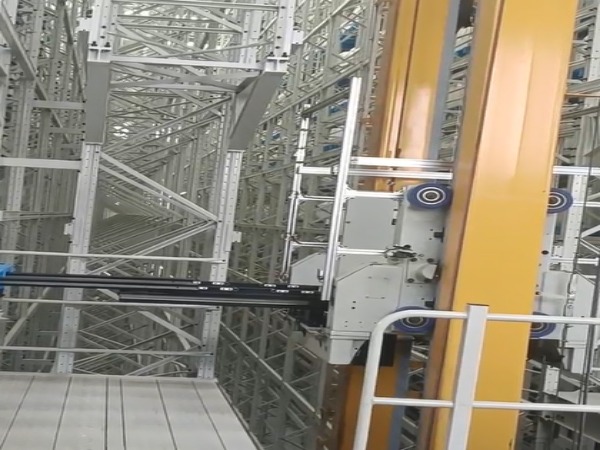

In automated stereoscopic warehouses, the guide wheel of the stacker directly affects the precision, stability, and safety of the stacker as it moves between high-rise racks to store and retrieve goods. Structurally, guide wheels are typically installed on the stacker's columns, load-carrying platforms, or running mechanisms. Through close contact with guide rails, they form a wheel-rail guiding constraint mechanism, ensuring the stacker does not deviate, shake, or tip over during high-speed operation, lifting, or steering.

Three Core Functions

The functional design of guide wheels revolves around the entire operation cycle of the stacker, playing an irreplaceable role in every stage from startup and operation to shutdown. Specifically, these functions can be summarized into the following three points:

1. Precise Trajectory Guidance

Automated warehousing has extremely high requirements for the positioning precision of stackers. Particularly in dense rack layouts, the width of the rack aisle is only 10-20 cm wider than the stacker body. Once the operation trajectory deviates, it can easily cause collisions between the equipment and the racks. Guide wheels form a rigid constraint through line contact or surface contact design with guide rails, controlling the stacker's operation deviation within the millimeter range. For example, in aisle stackers, guide wheels installed on both sides of the columns fit closely with the aisle guide rails, which can effectively offset the tilting moment generated when the stacker is lifted, ensuring the load-carrying platform is accurately aligned with the rack positions and laying a foundation for stable goods storage and retrieval.

2. Stable Operation Buffering

When the stacker accelerates during startup, decelerates during braking, or starts/stops during lifting, it generates a certain degree of inertial impact and vibration. If directly transmitted to the machine body or racks, this can lead to accelerated wear of equipment components or goods shaking and falling. High-quality guide wheels are usually equipped with built-in elastic buffering structures (such as rubber sealing rings and spring shock absorption devices), which can effectively absorb vibration and impact during operation and reduce equipment operating noise. In high-temperature and dusty industrial warehousing scenarios, the buffering performance of guide wheels can also reduce wear on the "wheel-rail" mating surface caused by sand and dust, extending the service life of the equipment.

3. Safety Redundancy Protection

The design of guide wheels also includes multiple safety redundancy mechanisms, providing double protection for the operation of the stacker. On one hand, some guide wheels adopt a "double-wheel symmetry" layout. Even if one guide wheel is slightly worn, the other can still maintain the guiding function, avoiding operational failure caused by sudden malfunctions. On the other hand, the rim of guide wheels is usually made of special wear-resistant and high-temperature-resistant materials (such as polyurethane and alloy steel) and is equipped with wear detection devices. When the wear amount reaches the threshold, the system can alarm in a timely manner to remind maintenance personnel to replace it, avoiding safety risks from the source.

Common Types and Scenario Adaptation

According to the structural type and operation scenario of the stacker, guide wheels can be divided into different types, and their adaptation logic directly affects equipment operation efficiency. The following are three typical types and their application scenarios:

1. Horizontal Guide Wheels

Installed at the bottom or top of the stacker's running mechanism, they cooperate with ground or overhead guide rails to control the horizontal operation trajectory of the stacker in the aisle. Such guide wheels usually adopt a "flat wheel + rim" structure, with a rim height of 5-10 mm, which can effectively prevent horizontal deviation of the stacker. They are suitable for most normal-temperature, medium-low speed aisle stacker scenarios, such as the goods storage area of e-commerce warehouses.

2. Vertical Guide Wheels

Installed on both sides of the stacker's load-carrying platform, they cooperate with column guide rails and mainly function to offset the tilting force generated when the load-carrying platform is lifted. The wheel body of vertical guide wheels is usually "V-shaped" or "U-shaped", which has a higher fit with the guide rails and better guiding precision. They are suitable for high-rise stackers or heavy-load scenarios, such as the heavy rack area of auto parts warehouses.

3. Universal Guide Wheels

Designed for circular stackers in circular stereoscopic warehouses, universal guide wheels can realize continuous guidance during 360° steering. Their core advantage lies in the adoption of a rotatable wheel frame structure, which cooperates with arc-shaped guide rails and can always maintain close contact with the guide rails during steering, avoiding trajectory deviation during steering. Such guide wheels have extremely high precision requirements and are usually used in circular sorting and warehousing systems of large logistics parks.

Industry Trends

As automated warehousing upgrades towards high density, high speed, and intelligence, guide wheels also present two major development trends. On one hand, the pace of intelligent upgrading is accelerating. Some high-end guide wheels have been integrated with temperature sensors and vibration sensors, which can monitor the operation status in real time and upload data to the WMS system, realizing "predictive maintenance" and avoiding sudden failures. On the other hand, customized demand is becoming prominent. For warehousing scenarios in special industries such as new energy and semiconductors, guide wheels need to have anti-corrosion, anti-static, ultra-quiet and other characteristics, prompting manufacturers to launch more scenario-based customized products.
