DRS Wheel Range for High-bay Warehouses

The DRS wheel range has a single-wheel load capacity range of 16–40 tons, matching the payload requirements of various stacker crane. Wheel diameters range from 250 mm to 500 mm, providing multiple size options that fit the installation space of both large and small carriage travel units on stacker cranes. The modular interface design is seamlessly compatible with stacker drive systems: mounting holes align precisely with the frame, enabling rapid integration without additional modifications and significantly reducing adaptation risk and installation costs.

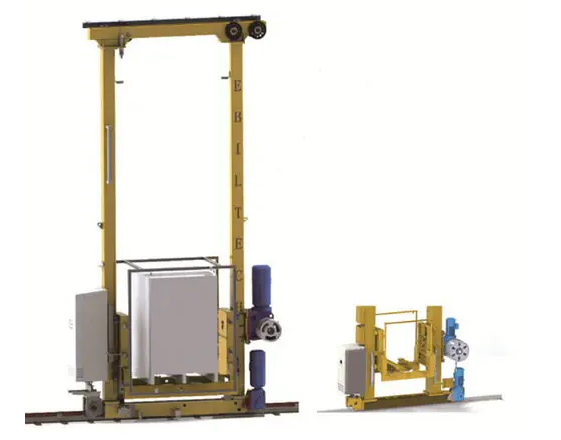

High-bay Warehouse Stackers

In automated multi-tier warehouses, high-reach stacker cranes operate between racks that are tens of meters high and require extremely high walking stability and positioning accuracy. The Demag DRS travel gearbox uses high-precision machined wheel treads that make close contact with the rail and maintain a stable friction coefficient, ensuring no lateral deviation or wobble during high-speed travel and frequent start/stop cycles. Paired with the stacker’s positioning system, this enables millimeter-level pick/place accuracy to meet the demands of dense high-rack storage. Its sealed protective design resists dust and moisture ingress in the warehouse, ensuring reliable long-term, high-frequency operation.

Application Advantages

Precision operation: Wheel bodies are made from high-strength alloy steel and quenched for high hardness and minimal deformation. An optimized tread profile ensures even contact with the rail and low rolling resistance. This can increase travel speed by 15–20%, provide more responsive acceleration and braking, and reduce pick/place cycle times—especially beneficial for high-throughput distribution centers.

High durability: The gearbox is equipped with precision bearings and a long-life lubrication system to minimize internal wear. Optional polyurethane-coated or wear-resistant steel wheel treads offer much higher abrasion and tear resistance than conventional wheels, extending service life by over 30%. The modular design allows individual disassembly and replacement without removing the entire travel unit, cutting maintenance downtime by about 50% and significantly lowering lifetime operating costs.

Safety and reliability:  The DRS travel gearbox passes stringent load, fatigue, and protection tests and meets industrial safety standards. Anti-derailment design and overload protection features mitigate operational risks. Even with slightly worn rails or uneven floors, it maintains stable operation to protect both goods and equipment.
