Material Handling Wheel Block Systems

Material Handling Wheel Block Systems are essential components used in various industries to support and guide the movement of heavy equipment and structures.

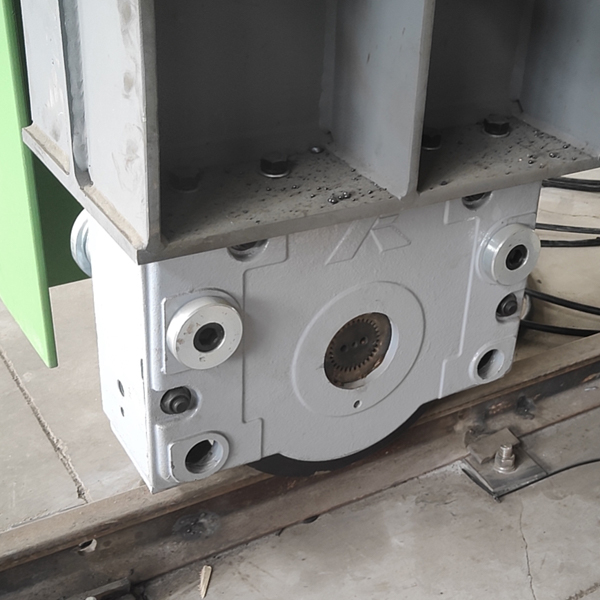

Material Handling Wheel Block Systems are essential components used in various industries to support and guide the movement of heavy equipment and structures. These systems are commonly found in overhead cranes, gantry cranes, transfer carts, trolleys, and other industrial transport systems. Their primary role is to provide efficient, safe, and smooth movement for loads within production facilities, warehouses, and manufacturing plants.

1. Structure and Components

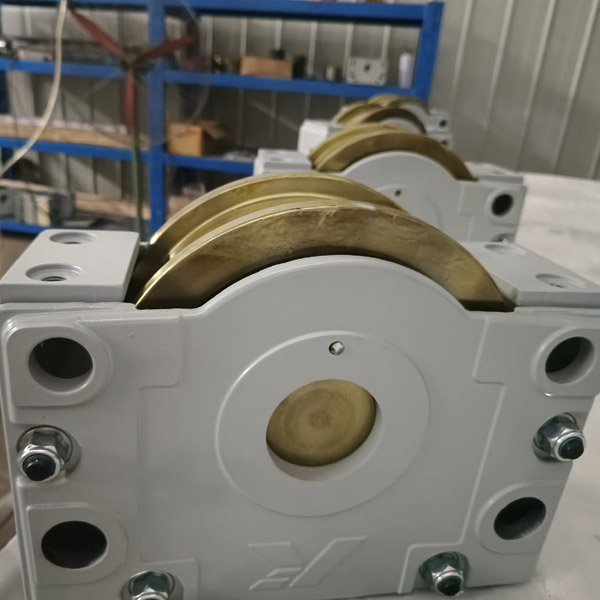

A typical wheel block system consists of the following core components:

Wheel: Made from high-strength materials such as forged steel or cast iron, the wheel carries the load and rolls along a rail or track.

Housing / Casing: Encloses the wheel and bearings; usually fabricated from high-quality welded steel to withstand dynamic and static loads.

Bearings: Support the wheel shaft and enable low-friction rotation.

Drive (Optional): In motorized systems, a gear motor may be directly attached to the wheel block to provide powered movement.

Mounting Plates / Bolts: Allow for secure attachment to the crane or machinery structure.

2. Key Features

High Load Capacity: Capable of carrying loads ranging from a few tons to over 100 tons.

Compact Design: Space-efficient for integration into complex machinery layouts.

Durability: Built to withstand harsh industrial environments, including high temperatures, dust, and moisture.

Precision Alignment: Ensures smooth tracking along the rail, reducing wear and improving safety.

Low Maintenance: High-quality bearings and materials reduce the need for frequent service.

3. Advantages

Modular Construction: Easy integration and replacement of individual components.

Design Flexibility: Adaptable to various installation configurations and load conditions.

Improved Efficiency: Enhances operational flow in material handling systems.

Enhanced Safety: Reduces the risk of derailments and structural failure.

4. Considerations for Selection

When choosing a wheel block system, consider the following:

Load Capacity

Travel Speed

Environmental Conditions (temperature, humidity, dust)

Rail Type and Track Width

Installation Space

Motorization Requirements (if applicable)

Material Handling Wheel Block Systems play a critical role in the movement of heavy loads across industrial facilities. Their robust construction, flexibility, and high load-handling capabilities make them indispensable in modern manufacturing and logistics environments. Choosing the right wheel block system ensures reliability, safety, and optimal performance in material handling operations.
